I.C. & PLCC Socket Connector

	I.C.&PLCC Socket Connector
	I.C.&PLCC Socket Connectort

PLCC Socket Facts

	> Pin 1 indicator and corner chamfer for PLCC orientation > Housing slots accept extraction tools for PLCC removal > Plastic stand-offs provide clearance for heat dissipation and cleaning operations. > Glass filled polyphenylene sulfide housings will withstand high temperature soldering > Closed bottom in housing prevents solder wicking

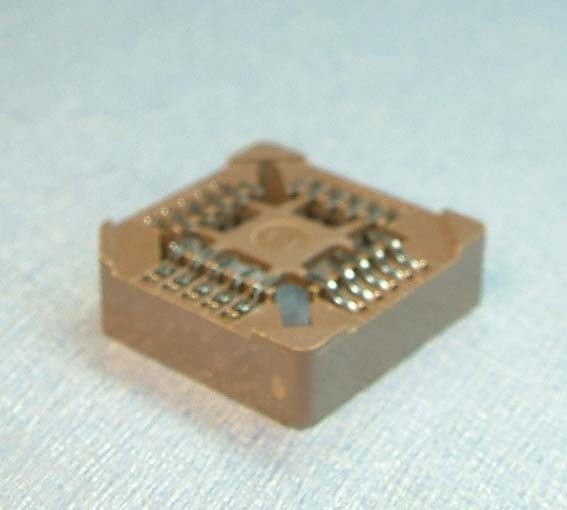

PLCC Description

	The through-hole PLCC sockets are designed to accept tin plated Plastic Leaded Chip Carrier packages conforming to JEDEC Standards MS-016 for rectangular packages or MS-018 for square packages. These sockets are available in 20,28,32,44,52,68 and 84 position sixes.These sockets feature glass filled polyphenylene sulfide housings suitable for wave or reflow soldering.The contacts are tin over nickel plated. Featuring an overall height of only 8.45mm[.333] maximum,these connectors allow close stacking of adjacent printed circuit boards.
