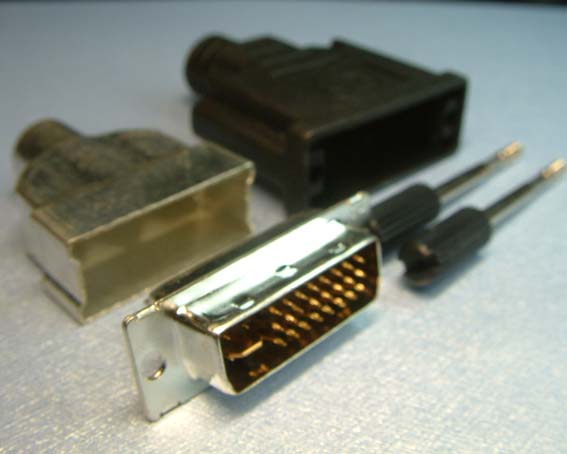

DVI Connector |
 |
|
Product Facts |
|
| |
Bridges the transition from analog to digital video display designs
Allows the adoption of a single monitor interface specification
Plug and play through hot plug detection,EDID and DDC2B |
|
 |
|
 |
|
Description |
|
| |

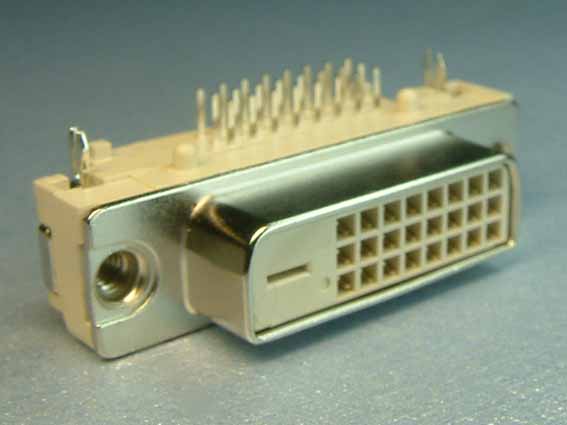

The DVI(Digital Visual Interface)printed circuit board receptacles are designed to meet the Digital Display Group,Digital Visual Interface DVI specification.These products support digital and/or analog video funtions in a single connector system.
The receptacle housings and spacers are manufactured of a thermoplastic material with a flammability rating of UL94V-0.The contacts,made of a phosphor bronze material are gold plated in the contact mating area with tin-plated solder tails over nickel underplated.
These products meet the requirements of all facts of the PC industry to allow the adoption of a single monitor interface specification for the next generation of high-resolution video applications. |
|
|
|
|
|
Electrical Data |
|
| |
Dry Circuit Resistance:
20 milliohms maximum initial,10 milliohms maximum change from initial
Shell Resistance:
50 milliohms maximum initial,50 milliohms maximum change from initial
Insulation Resistance:
1 Gihohm minimum
Dielectric Withstanding Voltage:
500 VDC
Applied Voltage Rating:
40 VAC
T.M.D.S.Signal Time Domain Impedance:
5% maximum
T.M.D.S.Signal Rise Time Degradation:
160 pS maximum
Analog RGB Coaxial Signal Time Domain Impedance:
75 ohm +/-10%
Analog RGB Coaxial Signal Time Domain Crosstalk(FEXT):
3% maximum
Analog RGB Coaxial Signal Rise Time Degradation:
140 pS |
|
|
|
|
|
Mechanical Data |
|
| |
Mating Force:
4.5kg[10.0 lbs.]maximum
Unmating Force:
4.0kg[8.8lbs.];1.0kg[2.2lbs.]maximum
Durability:
100 Cycles
PCB Insertion Force:
4.5kg[10.0 lbs.]maximum
Threaded Insert Torque:
0.57N-m[5.0in-lbs.]minimum
|
|
|
|
|
|
