Female Header & P.C.B Connector |
 |
|
Vertical Mount |
|
| |
> Dual-cantilever beam contact with box design and anti-overstress protection
> Single-row assemblies have .100[2.54]centerline contact spacing;double-row assemblies have.100 x .100[2.54 x 2.54]centerline contact spacing
> 3 through 40 positions in single-row assemblies;2 through 80 positions in double-row assemblies
> Duplex gold and bringht tin plated contacts have full nickel underplated
> Thermoplastic housings,94V-0 rated
> Standoffs for easy flux cleaning
> All assemblies are end stackable |
|
 |
|
 |
|

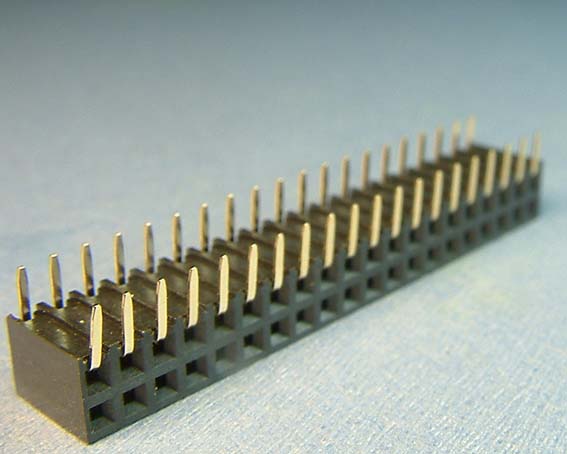

Horizontal Mount |
|
| |
> All receptacle assemblies are end stackable
> Contact design employs dual cantilever beams with built-in anti-overstress feature
> Closed entry housings prevent post stubbing
> Wide range of sixe available
> Other versions available upon request
> Housings made of high temperature,surface mount compatible thermoplastic material,94V-0 rated
> Duolex gold and bright tin plated contacts have full nickel underplated
> Housings feature PC board standoffs
> Solder tails accommodate a PC board thickness of .062[1.57 |
|
|
|
|
|
