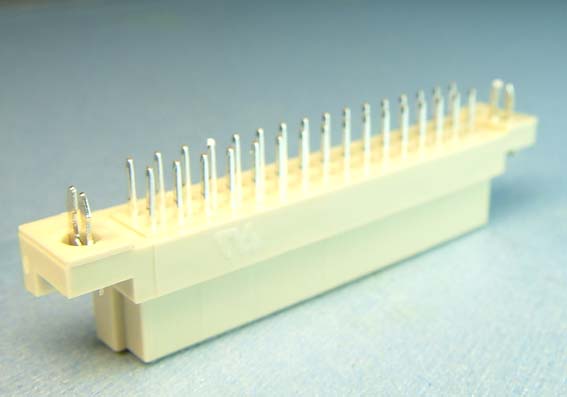

Pin & Box & Din 41612 Header Connector |
 |
|

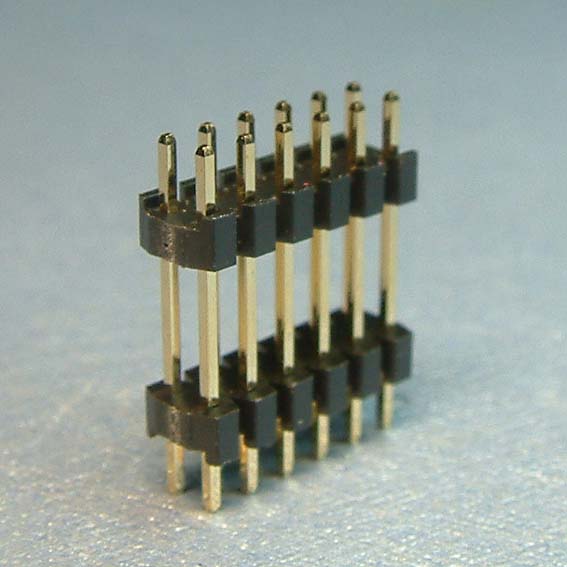

Pin Header |
|
| |
> Available in single and double row
> Parallel PC board stacking with numerous stack heights available
> Drawn wire posts allow 4 side mateability
> May eliminate the need for additional board spacers
> Can be used in conjunction with bottom entry receptacles
> Gold or Tin Plated
> Up to 1.430[36.32] overall post length
> Retention and surface mount features available upon request
> Tape and reel packaging available.
> Pick-and-place cap available for vacuum placement |
|
 |
|
 |
|

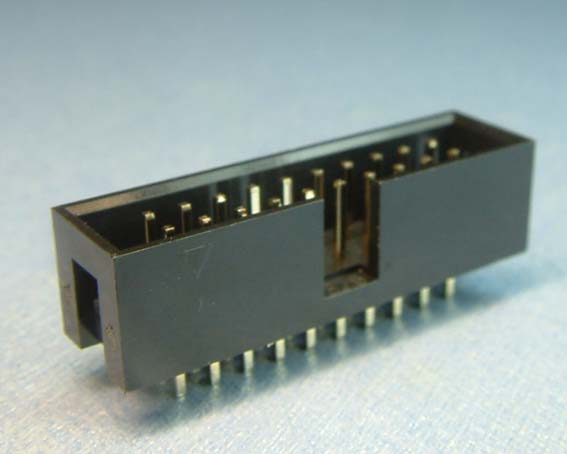

Box Header |
|
| |
> Available in .000015[0.00038]and .000030[0.00076] gold duplex plated posts
> Available in selected positions 10 thru 60
> Flame retardant,black thermoplastic housings,94V-0 rated
> Vertical and right-angle versions available in double row configurations
> Available in .025[0.64] square drawn wire posts
> Wash out clearance for flux removal
> Accepts center and double bar polarization housings
> Available with and without eject latches
> Available with and without high temperature compatible material
|
|
|
|
|
|
