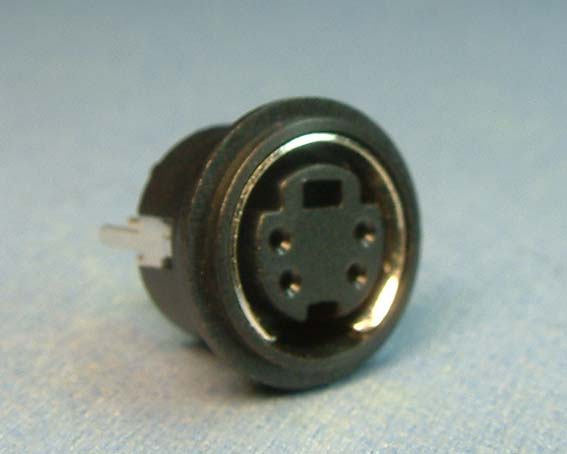

Mini Din Connector |
 |
|
Products Facts |
|
| |
> Compact Size,same envelope dimension for all sizes--3 through 9
> Available in 6 and 9-positions stacked configurations
> Stacked visual keying available
> Right-angle and vertical receptacles incorporate one-piece shield for excellent shielding effectiveness
> Polarized and keyed to prevent mismating
> Housings made of 94V-0 rated thermoplastic,IR reflow compatible
> Right-angle receptacles compatible with robotic pick-and-place assembly
> Receptacles with fully formed socket contacts with proven retention system
> Receptacles accept plug connectors with or without latches |
|
 |
|
 |
|
Description |
|
| |
Shielded Mininature Circular DIN printed circuit board receptacles are ideal I/O connectors where board real estate is at a premium.All connectors are available in three through eight positions plus right-angle connectors are available in a nine position configuration.Stacked connectors are also available in six-and nine-position configurations.
Miniature Circular DIN,pcb thru-hole receptacles are available in a choice of right-angle or vertical mount designs.
Right-angle receptacles are designed for automated assembly.They incorporate registration notch controlled datum surfaces and contact locations needed for robotic pick-up and placement.The housings,made of 94V-0 rated material,are designed to withstand the rigors of IR reflow soldering.The right-angle design incorporates a one-piece copper alloy shieled and features optional front panel grounding fingers or grounding clip.Both ensure direct grounding.
Thru-hole contacts are tin plated for easy soldering,while the receptacle's stand-off design prevents shield damage to the pc board traces,and enhances clearing after soldering.
Vertical mount receptacles are offered in two shielded configurations--with or withour front panel screw-down. |
|
|
|
|
|
Specification |
|
| |
Voltage Rating:30VAC rms,or 30 VDC
Current Rating:1 ampere,max.
Dielectric Withstanding Voltage:500 VAC rms
Termination Resistance:30 millioohms,max.
Mating Force:9lbs [40N],max.
Unmating Force:2lbs [8.9N],min.
Durability:100 mating cycles for gold flash plating.
Application Temperature Range:Max.255 C for 4 min.
Operating Temperature Range:-55 C to + 105 C |
|
|
|
|
|
