Duac Power Connector |
 |
|
Product Facts |
|
| |
> Wire-to-board and wire-to-wire connection system
> Free hanging or panel mount plug housing

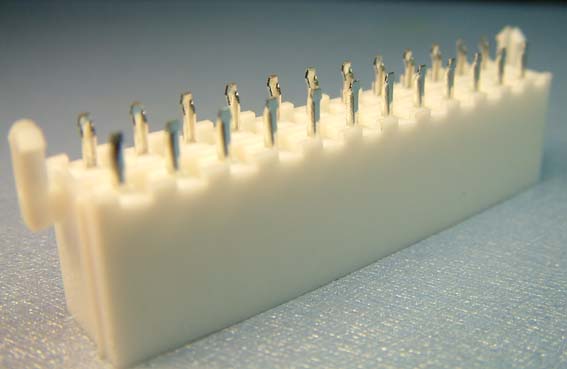

> Vertical header with or without mounting pegs and with or without drain holes
> Selective loading available on vertical headers
> 4.2mm x 4.2mm centerline
> Male and female contacts designed for 26-22 AWG and 22-18 AWG wire
> Receptacle housings accept female contacts with less orientation than competitive product

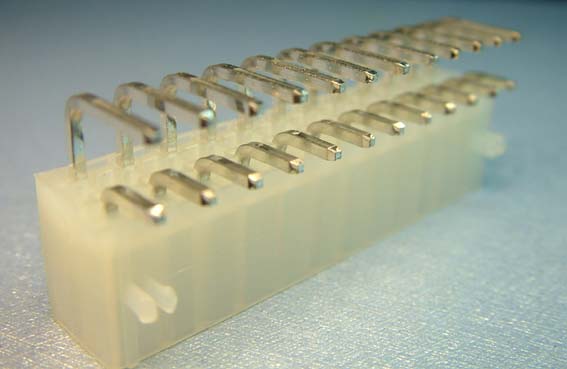

> Right-angle headers
> Designed for power applications
> Positive latch feature helps prevent disconnection
> Duac (dual action) receptacle contacts
> Anti-stubbing contact design
> Polarized housings
> Intermateable with Molex Mini-Fit Jr.connectors
|
|
 |
|
 |
|
Description |
|
| |
DUAC power connectors,for power or signal applications.
The dual action design of the female receptacle contact provides for low insertion force,yet maintains high performance current capacity.To help meet your production requirements,semiautomatic bench machines and hand tools are available for strip and loose piece contacts,respectively.
High density,4.2mm x 4.2mm [.165 x .165] centerline,dual-row receptacle housings mate with plug housings (free hanging or panel mount) or pc board headers (vertical or right-angle).Selective contact loading is available for vertical headers.
All housings are polarized for easier mating and locking latches help maintain reliable connections.
The Duac wire-to-board, wire-to-panel, and wire-to-wire connectors are intermateable with Molex Mini-Fit Jr.series connectors. |
|
|
|
|
|
Performance Data |
|
| |
Voltage Rating:
600 VAC
Insulation Resistance:
1000 megohms min.
Current Rating:
9 amps max.in 2 position applications
Low Level Resistance:
10 megohms max.
Dielectric Withstanding Voltage:
1500 VAC/min.
Operating Temperature:
-55C to +105C [-67F to +221F] |
|
|
|
|
|
