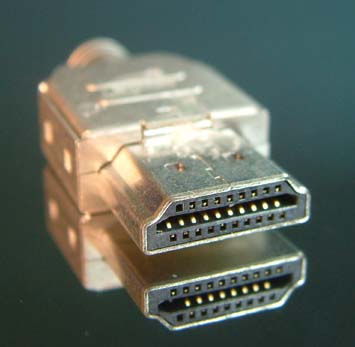

HDMI Connector |
 |
|
Description |
|
| |
HDMI High-Definition Multimedia Interface connector is the next generation interface for
consumer electronics products such as digital
television,set-top boxes and DVD players.HDMI supports standars,enhanced,or high-definition video,plus multi-channel audio on a signle cable
|
|
 |
|
 |
|
Applications |
|
| |
-Digital or High-Definition TV
-Set-top Boxes
-DVD Players
-Desktop PC |
|
|
|
|
|
Features |
|
| |
-Simple User Friendly Connector
-Replaces existing audio and digital cabling in one assembly
-Easy-to-use friction lock design provides
secure electrical contact and smooth cable insertion/extraction
-Full shielding for ESD protection and lead-free process capable
-With or without panel flange
-19positions and 5 Gigabites/second of bandwidth
to support video and multi-channel audio in a
single cable
|
|
|
|
|
|
Specifications |
|
| |
Mechanical:
-Durability:10,000 cycles
-Mating Force:9.9lbs.[44.1 N]maximum
-Unmating Force:2.2lbs.[9.8 N]maximum |
|
|
|
|
|
