Memory & Smart Card Connector |
 |
|
Smart Card Connector |
|
| |
> Broad choice of connector styles for use with Smart Cards and SIM/SAM cards
> Smart Card connectors accept ISO 7810/7816 and /or ISOCP8AFNOR Smart Cards
> Connectors available in 6,8 and 16position configurations with card detection switches
> Choice of through-hole or surface mount onto printed ciucuit board,also remote mount onto panel or board
> Connector styles available with or without card scoop
> Contacts are phosphor bronze with duplex gold over nickel plating on mating area
> High Temperature thermoplastic housings
Low insertion forcees minimize card wear
> Durability reating range from 10,000 to 100,000 cycles |
|
 |
|
 |
|
Description |
|
| |
Conser offers a versatile family of Smart Card Connectors designed to meet today's requirements for Smart Cards used in a varity of electronic devices.Conser connectors accept 0.76 [.030]thick integrated circut type Smart Cards meeting the ISO 7810-7816 or ISOCP8-AFNOR standards and GSM 11.11 standards for SIM cards.
Conser Smart Card Connectors are availabe in various board mount and surface mount versions.These connectors are supplied in 6,8 and 16 positions with card detection switches.Housing configurations include standard,low profile,standard with card scoop and front panel mount.

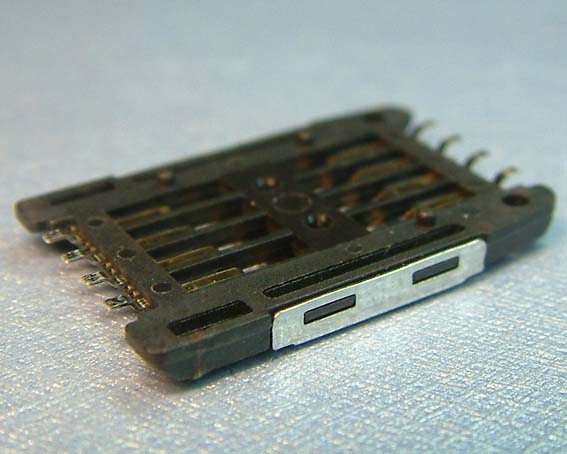

Surface mount SIM/SAM Connectors are available in 6 or 8 positions.The Generic SIM Connector is a low profile 6 position contact module while the SIM/SAM Connector is hinged and is available in an 8 position or 6 position version with a detection switch.
Conser Smart Card Connectors are ideal for use in a growing varity of electronic equipment including: TV set-top boxes,POS,payment and health terminals,ATM and vending machines,electronic wallets,mobil and pay telephones,ID/access control,computers and medical diagnostic equipment. |
|
|
|
|
|
