Introduction |
|
| |
Board Mount connectors are available in right-angle and straight posted versions.The majority of these connectors have.026[0.66] round or .025[0.64] square posts for soldering to the pc board.

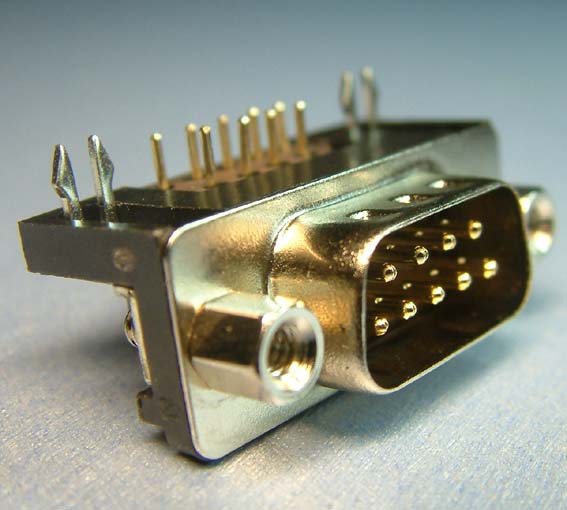

A wide range of right-angle connectors are available in a variety of configurations and designed with the right quality for your specific applications.In addition,right-angle connectors are provided with various pc board footprints.
The most popular .318[8.08] includes all varieties of connectors...from standard connectors for less critical applications,to other connectors designed for special cost savings,as well as maintaining the same connector quality.
Right-angle connectors are available with full metal-shell,front metal-shell and all plastic versions.Full metal-shell connectors use a front and rear metal-shell clinched together to form the mounting flange.In the front metal-shell version,the shell is clinched directly to the plastic flange of the connector. In the front metal-shell connector, has integral 4-40 threaded screw holes.
Stacked right-angle connectors are a variation of the front metal-shell connectors and are designed to optimize pc board space.These versatile connectors are available in plug-over-plug,receptacle-over-receptacle, mixed hybrid configuration.
Right-angle connectors are also available in two popular coax mix configurations,13C3 and 3C3.

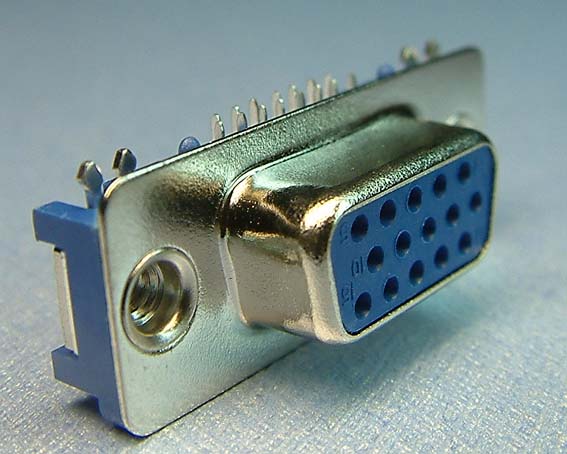

The versatility of the Subminiature D connector line continues with high density connectors,and straight posted connectors.

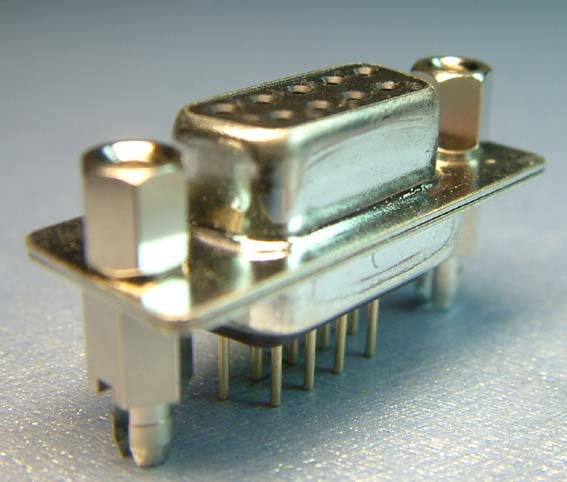

Straight posted connectors are available with standard solder leads or in pressfit versions using Action Pin contacts which are compliant pins that allow solderless connection to plated-thru hole,and the residual spring energy of the split pin forms a reliable,gastight connection.
Whatever your application requires,we have the subminiature D connector to match your needs. |
|
 |
|
 |
|
