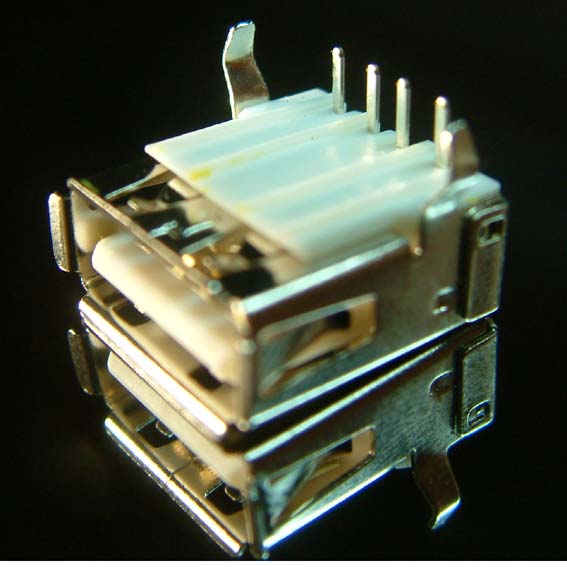

USB & Mini USB Connector |
 |
|

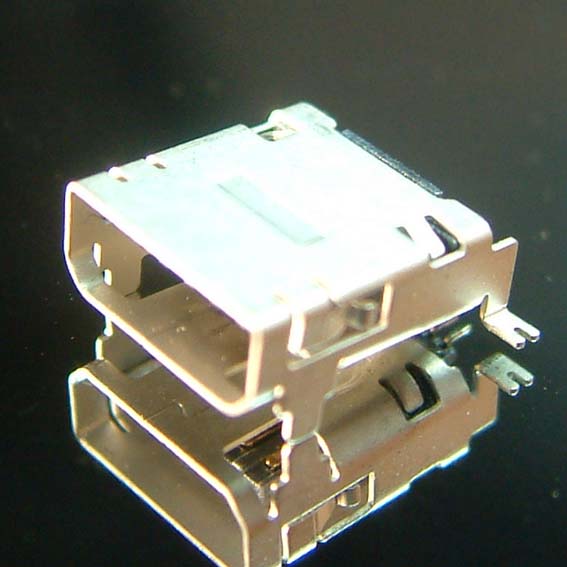

Mini USB Description |
|
| |
-Designed to meet the USB 2.0 sSpecifications
-Single 5-position (one ID Pin)receptacle
connector polarized for proper orientation
-Used in Next Generation high density computer
peripherals,PDAs,palm tops and cell phones
-Designed for 480MB/s transfer rate |
|
 |
|
 |
|
Features |
|
| |
-High density design allows for all the benefits
of USB in a smaller package than traditional
USB connectors
-Four solder hold downs provide stability in
mating and unmating by preventing stress on
surface mount connector leads
-Mini-B receptacle keyed to allow device to act
as a peripheral
-Mini A/B receptacle keyed for devices that can
act as a host or peripheral
|
|
|
|
|
|
Applications |
|
| |
-Supports latest technology for personal computer
"Plug and Play" peripheral connectivity
-Uses Serial Bus technology to connect USB
personal computers to PDAs,cell phones,video
cameras,scanners,printers,keyboard and mouse
|
|
|
|
|
|
Specifications |
|
| |
Electronics:
-Dielectric withstanding Voltage:100VAC
-Current Rating:1.5A@250VAC Min.
-Insulation resistance:100 Megohms Min.
-Contact Resistance:50 Milliohms Max.
-Contact Capacitance:2pf Max.per contact
Mechanical:
-Durability:5,000 Cycles
-Mating Force:3.57Kg.Max.
-Unmating Force:.31 Kg.Min.
Recommended PCB thickness:1.57mm and .8mm |
|
|
|
|
|
